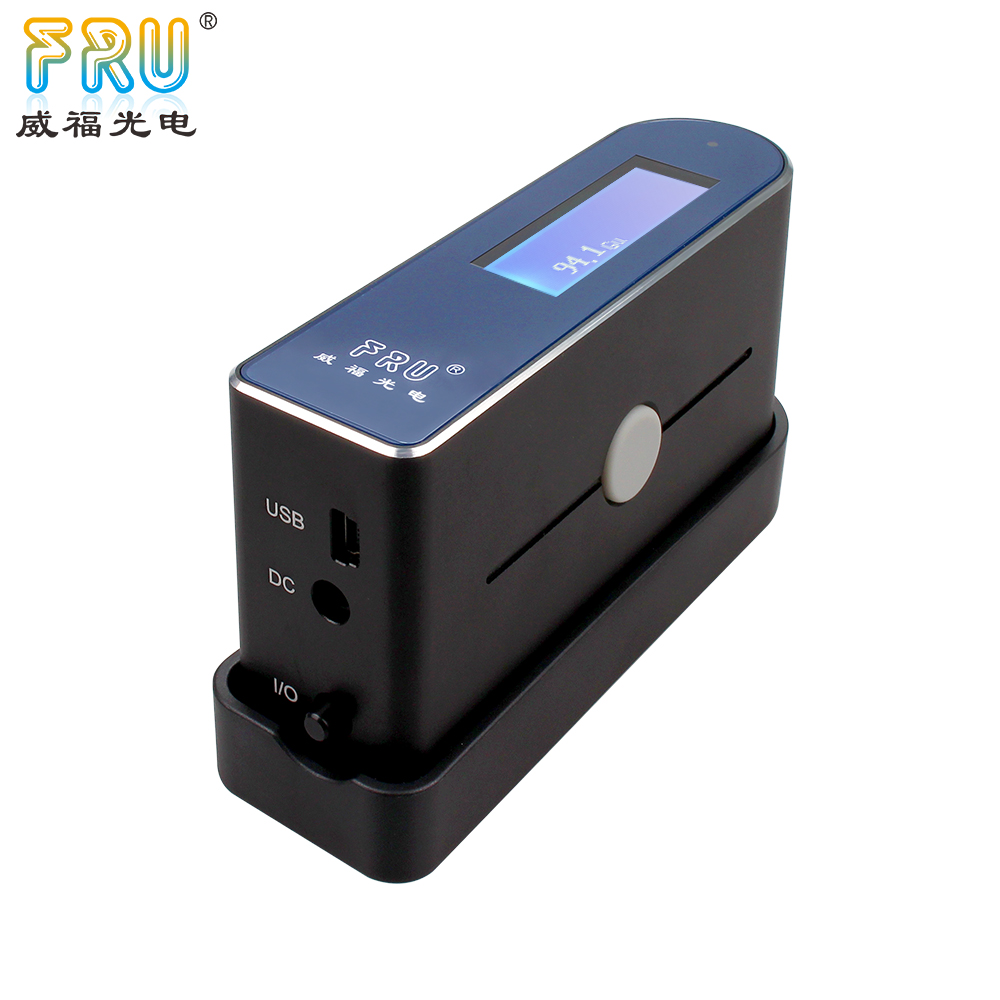

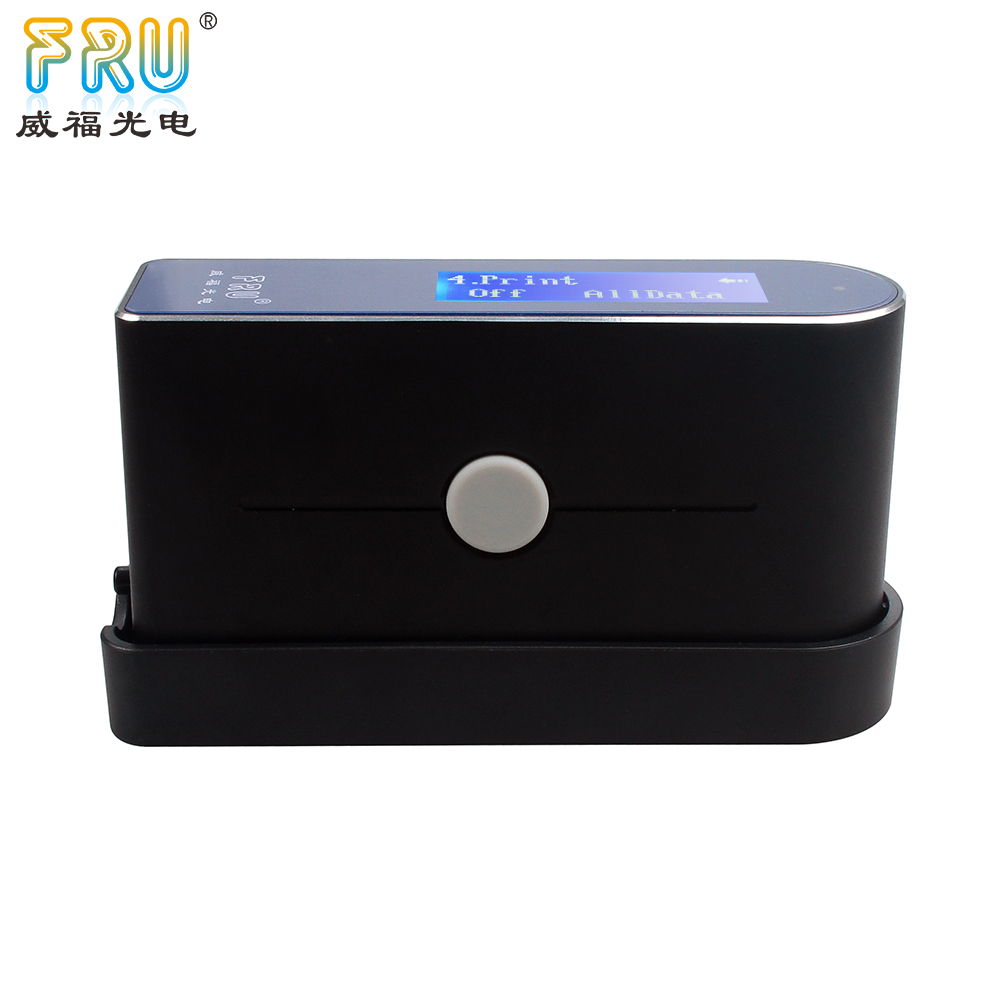

FRU Gloss Meter WG60
(Single 60 angle without PC software)
1.Application:
WG60 Gloss meter can be applicable in nonmetal materials such as: coating, printing ink, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper etc.
3. More details:

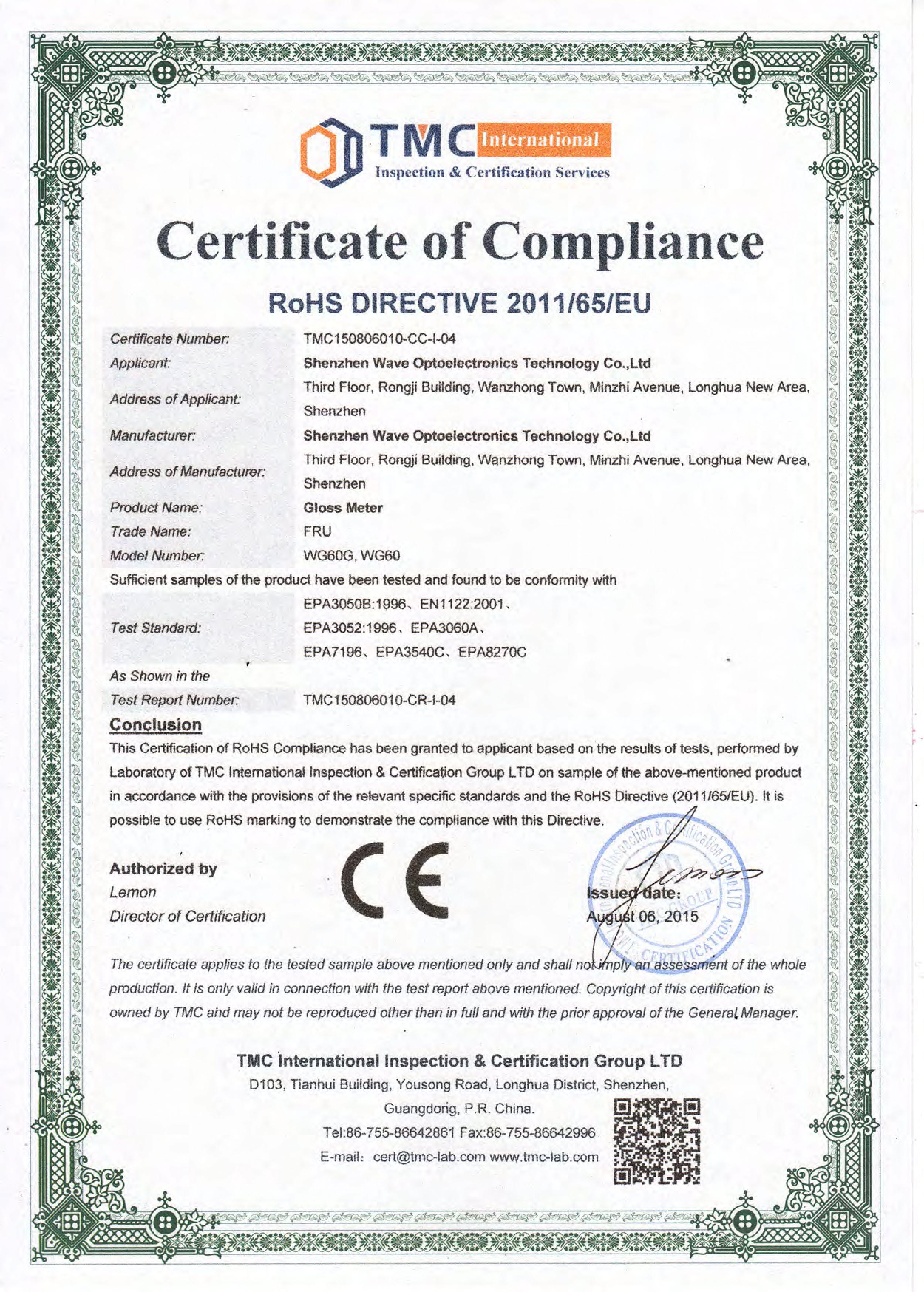

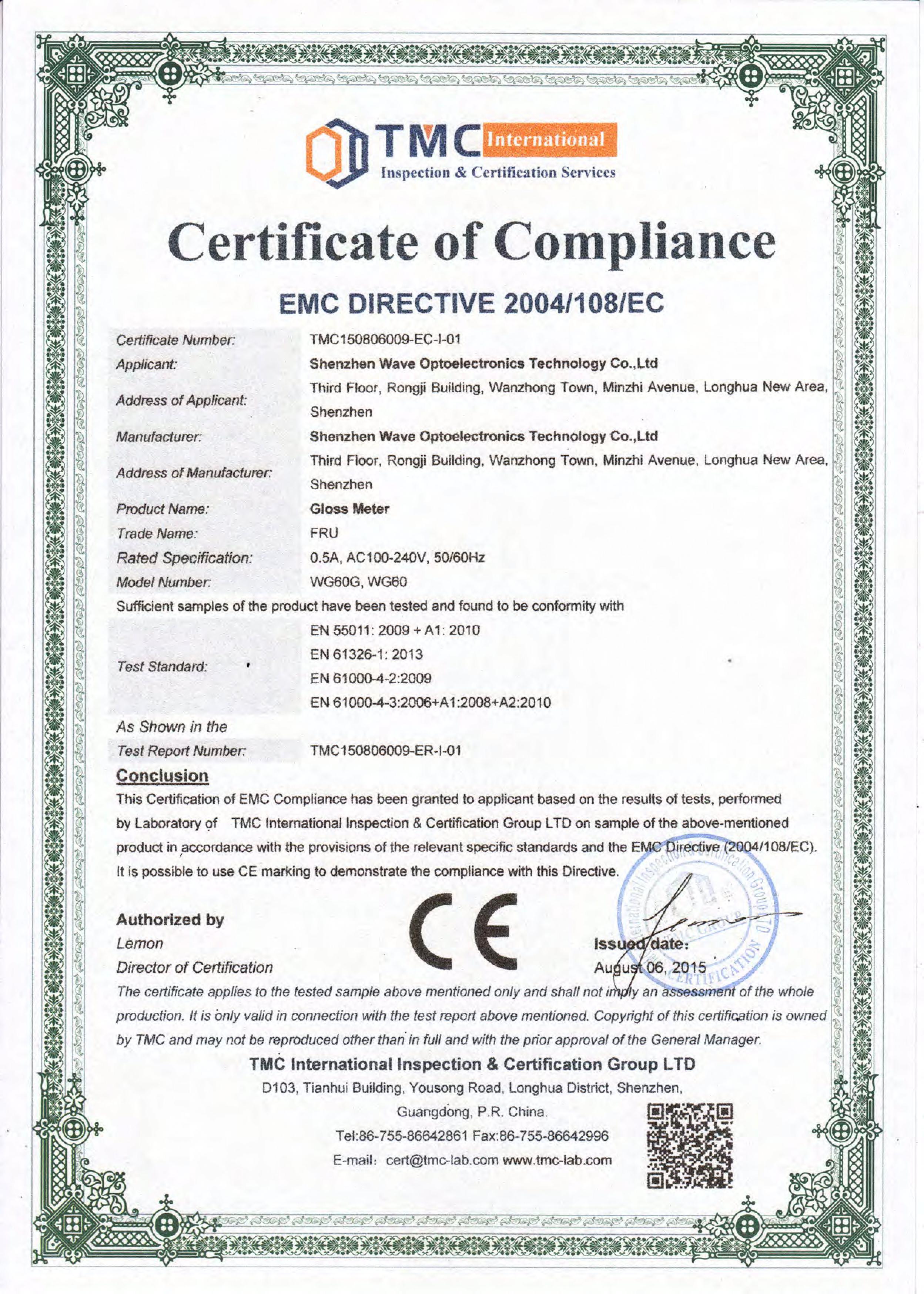

4. Certificates:CE/ROHS
|
Product Name |
Gloss meter |
|||||||||||
|
Model |
WG60 |
|||||||||||
|
Measurement Range |
0-200Gu |
|||||||||||
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
|||||||||||
|
Instrument Dimensions |
122x34x60mm |
|||||||||||
|
Projection Angle |
60° |
|||||||||||
|
Measuring Spot |
（ellipse: long axis*minor axis）8mm*4mm |
|||||||||||
|
Measuring Mode |
Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode |
|||||||||||
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
|||||||||||
|
Data Storage |
100 groups |
|||||||||||
|
|
set standard sample in any stored data, user-define the tolerance range |
|||||||||||
|
Language |
Chinese/English |
|||||||||||
|
Output |
connect the micro printer to realize real-time output of measured data |
|||||||||||
|
Division Value |
0.1Gu |
|||||||||||
|
Repeatability |
0.2Gu |
|||||||||||
|
Reproducibility |
0.4Gu |
|||||||||||
|
Indication Error |
1.0Gu |
|||||||||||
|
International Standard 60° |
ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60 |
|||||||||||
|
National Standard 60° |
GB 9754、GB 9966、GB 8807 |
|||||||||||
|

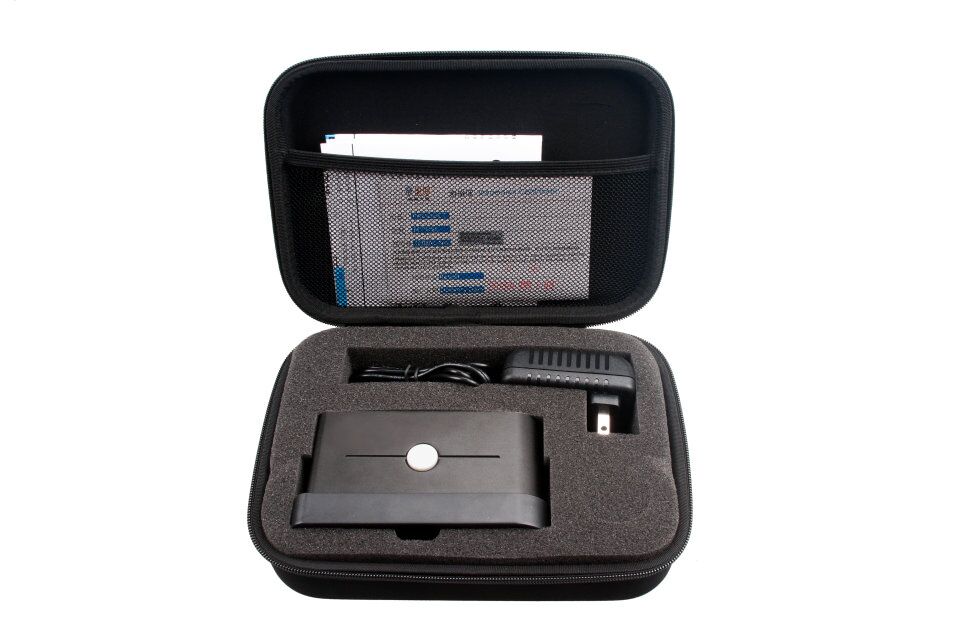

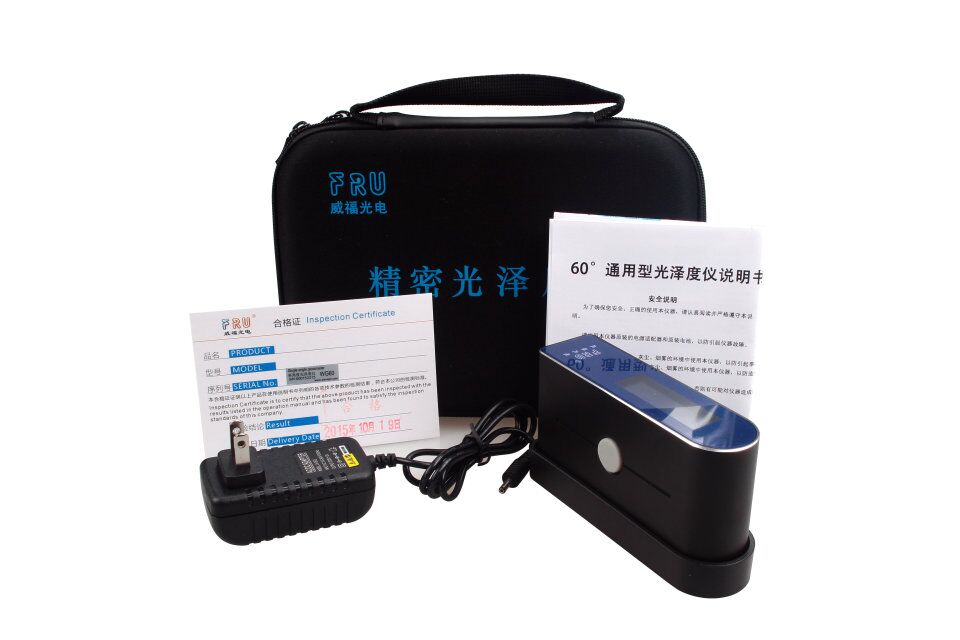

Standard Accessories |
Power adapter/user manual/warranty certification/standard board |
|||||||||||
|
Optional Accessories |
micro-printer |
|||||||||||
|
Model |
WG60 |
WG60G |
WG60T |
WG60A |
WG68 |
|
Picture |
|
|
|
|
|
|
Measurement Range |
0-200Gu |
0-2000Gu |
0-200Gu |
0-1000Gu |
20°: 0-2000 60°: 0-1000 85°: 0-160 |
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
||||
|
Projection Angle |
60° |
20°60°85° |
|||
|
Measuring Spot |
12*40mm |
1*3 mm |
14*61mm |
||
|
Measuring Mode |
Automatic/ manual /single / average and combination angle |
Automatic/ manual /single /average and combination angle Show maximum/minimum value |
|||
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
||||
|
Data Storage |
100 groups |
500 groups |
10000 groups |
50000 groups |
|
|
set standard sample in any stored data, user-define the tolerance range |
|||||
|
Language |
Chinese/English |
||||
|
Output |
Mini printer |
Software to PC |
Mini printer |
Software to PC |
|
|
Division Value |
0.1Gu |
0-1000:0.1Gu/1000-2000:1Gu |
|||
|
Repeatability |
0.2Gu |
0-100:0.2＞100:0.2% |
|||
|
Reproducibility |
0.4Gu |
0.2Gu |
|||
|
Indication Error |
1.5Gu |
1.0Gu |
|||
|
International Standard 60° |
ISO－2813/ASTM－C584/ASTM－D523/DIN－67530/ASTM－D2457/JND-A60/JND-P60/ISO7668 |
||||
|
National Standard 60° |
GB 9754/GB 9966/GB 8807 - GB/T 9754,GB/T 13891,GB/T 7706,GB/T 8807 |
||||
|
Working Temperature |
10℃ - 40℃ |
||||
|
Storage Temperature |
-10℃ - 70℃ |
||||
|
Humidity Range |
Relative humidity less than 85%, without condensation |
||||
|
Volume |
122*34*60mm |
159x49x72mm |
|||
|
Weight |
310g |
500g |
|||
|
Standard Accessories |
Power adapter/User manual Warranty card standard board |
Add usb cable GlossW software |
Add standard + 5V battery |
Add standard + 5V/usb cable/GlossW software |
|
